Universal Camera · Turret Design

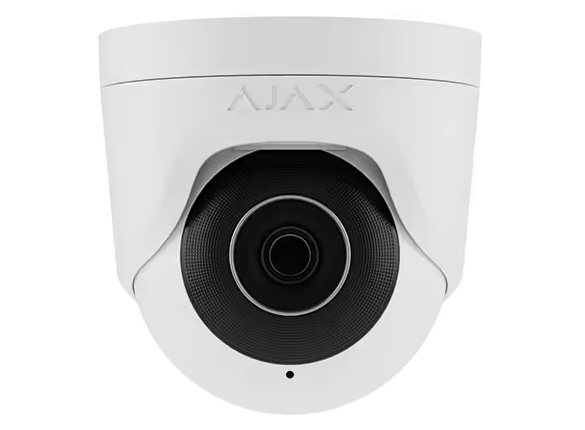

TurretCam — Universal AI Camera

Compact turret-form IP camera with 110° wide-angle view, AI person and vehicle detection, and True WDR. The most versatile Ajax camera — equally at home on driveways, building entrances, corridors, and retail floors.

5 MP / 8 MPIR 50 m110° FOVIP65PoE / 12VAI Detection

Get a Quote Contact Us

Key Features

Why choose Ajax TurretCam?

Professional-grade hardware engineered for reliable performance in Canadian climate conditions.

🔭

Wide 110° Field of View

The 2.8 mm lens captures a broad scene — ideal for entrances, hallways, and open areas where coverage width matters.

🧠

AI Object Detection

Classifies humans, animals, and vehicles with neural-network accuracy. Filters out false triggers from moving foliage, rain, or insects.

🌙

50 m Smart IR

Adaptive IR backlight automatically adjusts intensity to avoid overexposure, delivering sharp images of nearby and distant subjects simultaneously.

🔆

True WDR

Handles back-lit entrances and mixed lighting scenarios in real time — no blown windows, no dark faces.

🎤

Digital Microphone

Onboard mic captures audio evidence with G.711/G.726 codec support for recording via Ajax NVR.

🔧

Easy Positioning

Compact turret housing allows 360° rotation on the base and 90° tilt — precise aim during installation without tools.

Technical Specifications

Full Specs

Complete technical data for system design and installation planning.

Parameter	Value
Resolution	5 MP (2560×1944) or 8 MP (3840×2160)
Lens options	2.8 mm (110°) · 4 mm (85°)
Night vision	Smart IR up to 50 m
Protection class	IP65 · IK08
Power	PoE 802.3at/af · 12 V DC, max 15 W
Storage	microSD up to 256 GB · Ajax NVR
Compression	H.265 / H.264
Integration	ONVIF · RTSP · Ajax Cloud · JetSparrow
Operating temp.	−40°C to +60°C
Warranty	3 years (Authorized Ajax Partner)

Applications

Where It's Used

Trusted by homeowners, businesses, and institutions across Ottawa and Eastern Ontario.

🚪

Building Entrances

Wide 110° angle captures the full entrance area — pedestrians, vehicles, and bystanders in one frame.

🏬

Retail & Lobbies

Discreet turret form factor blends into interior design while monitoring customer and staff activity.

🏡

Driveways

Covers the entire driveway width from a single camera mount point on the garage or eave.

🏭

Warehouses

High ceiling installation with wide angle monitors large floor areas with minimal blind spots.
